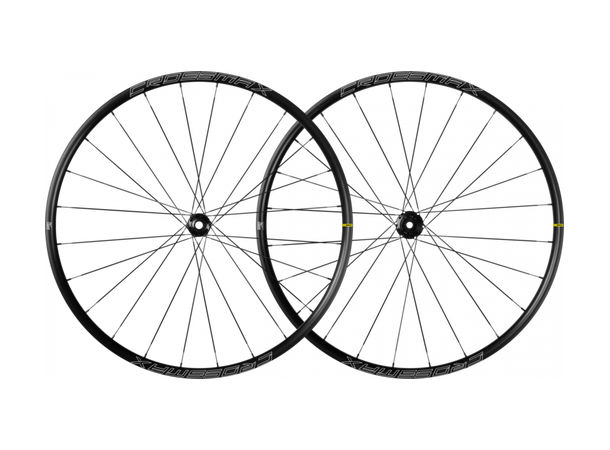

Mavic Crossmax 22 29" Hjulsett Boost MS

2 replacement spokes with each wheel

Featuring Infinity hubs, ID360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Crossmax name: strong, reliable, and tubeless ready.

Weight
1770 grams (Pair 29")
820 grams (Front 29")
950 grams (Rear 29")

KEY BENEFITS

Light and durable
Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim

Dynamic and agile
24 double butted spokes Infinity hub platform ID360 double ratchet freewheel? system

Tubeless ready technology
A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano Micro Spline driver bodies. The Crossmax is center lock brake rotors in 29”. The wheel is delivered with valves, replacement spokes and accessories.

SPECIFICATIONS

Rims
Material: Maxtal
Drilling: traditional
Valve hole diameter: 6.5 mm
Internal width: 25 mm
ETRTO size 29": 622x25TSS
Use with Mavic Tubeless Tape
Asymmetrical rim design
UST Tubeless Ready
SUP

Spokes
Material: steel
Shape: straight pull, flat, double butted
Nipples: steel, ABS
Count: 24 front and rear
Lacing: front and rear crossed 2

Hubs
Hub center lock (R) brake rotors
Infinity Hub
Instant Drive 360
QRM Auto

Versions
Disc standard :Center Lock (R)
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility
Boost & Non-Boost

Intended use
ASTM CATEGORY 3 : CROSS COUNTRY
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
Recommended tyre sizes: 50mm to 76mm (2.0" to 3.0")

Delivered with
UST valve and accessories
Pre-installed tubeless rim tape
