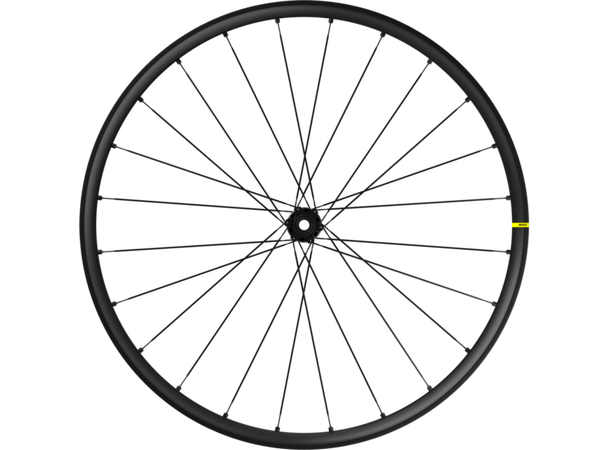

CROSSMAX XL 29

Super strong and durable, this 29” MTB wheelset offers unrivaled alloy rim performance and a tubeless system that’s easier to use than anything else on the market.

Weight
1930 grams (Pair 29")
900 grams (Front 29")
1030 grams (Rear 29")

KEY BENEFITS

Versatile, dynamic trail riding performance
Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches. New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.

More confidence and control on rugged terrain
30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.

Most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.

Trail riding is all about adventures, thrills and fun. Exploring wild places and flowy trails. To get the most out of your ride, you need to have confidence in your gear. This is especially true with your wheels, which play a critical role in the overall ride experience. That’s where the new Crossmax XL comes in. It represents the highest quality aluminum trail wheel we’ve ever built.

The rims are made with our patented Fore technology, which features a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tires. The rim has a 30mm internal width, perfect for optimizing the performance of any modern trail tire. It’s engineered with a super strong triangular shape, designed specifically to absorb impacts from the trail. Our Black Shield technology gives them a distinctive finish that protects against scratches and abrasions.

We use 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Infinity hubs feature a stiffer and lighter construction that’s enhanced by the ultra-reliable ID360 double ratchet system for fast engagement. The wheelset is set up for 6-bolt or center lock disc mounts and is compatible with Shimano HG9, SRAM XD, and Micro Spline freewheel bodies. It’s available in either 27.5” or 29” and ships with UST tubeless valves, spare spokes and accessories.

SPECIFICATIONS

Rims
Material: Maxtal
Material: S6000 Aluminum
Tire: UST Tubeless and tubetype
Internal width: 30 mm
Black Shield treatment (protects your rim against impacts and scratches)
ETRTO size 29": 622x30TC
Asymmetrical rim design
Fore
SUP

Spokes
Material: steel
Shape: straight pull, flat, double butted
Nipples: Fore integrated aluminum
Count: 24 front and rear
Lacing: front radial, rear crossed 2, contactless
Lacing: front and rear crossed 2, contactless

Hubs
Hub available with 6-bolt or center lock (R) brake rotors
Axles: Front 15X110 Boost ; Rear 12X148 Boost

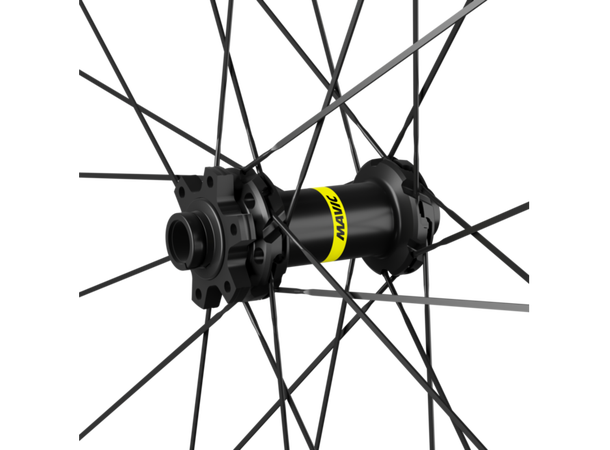

Infinity Hub
Instant Drive 360
Tyre
UST Tubeless Ready

Versions
Disc standard : 6 Bolts or Center Lock (R)
Hub width : Boost only (front 110, rear 148)
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility
Freewheel: Shimano HG9, XD or Micro Spline
Rear axle: 12x148 Boost thru axle
Front axle: 15x110 Boost thru axle

Compatible Adapters and freewheel bodies
Boost : Torque Caps (LV2374400)
ID360 Shimano HG9 alloy freewheel body (LV3780100)
ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
ID360 Sram XD freewheel body (LV3740100)

Intended use
ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")

Delivered with
UST valve and accessories
Multifonction adjustment wrench (delivered with rear wheel)
2 replacement spokes with each wheel
Fore adjustment wrench
