ALLROAD SL DISC

Gravel, dirt, teeth-chattering pavé. Ride it all with confidence in control on this lightweight,
responsive, all-conditions aluminum wheel featuring Mavic UST Road Tubeless technology

Ride smoother and faster on rough roads, gravel and dirt
• 22mm wide UST rims integrated for a smooth ride with a wide range of tubeless tires from 28mm-64mm
• UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
• No tubes means less friction, better efficiency and grip, and pinch-flat protection

Superlight and durable
• ISM4D rim weighs only 440g
• Patented lightweight aero spokes
• Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability
• Fore drilling doesn't require the use of rim tape - 30g saved per wheel

Laterally stiff and vertically compliant for a dynamic ride quality
• Fore technology keeps the rim upper bridge solid to make the rim stiffer
• 17mm axle and new hub design
• ID360 freewheel technology is 12mm compatible, convertible to quick release (15mm axle option through axle replacement)

PAIR 1590 g
FRONT 740 g
REAR 850 g

RIMS
• Material: Maxtal
• Height: 22mm
• Joint: welded (SUP)
• Drilling: Fore (fully sealed rim with no rim tape)
• Disc brake specific profile
• Weight reduction: ISM 4D
• Tire: UST Tubeless and tubetype
• Internal width: 22mm
• ETRTO size: 622x22TSS ROAD
• Hookless profile

SPOKES
• Material: steel
• Shape: straight pull, elliptical aero, double butted (patented)
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

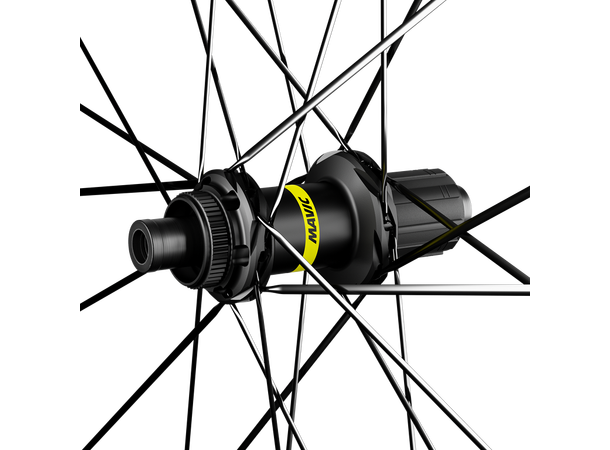

HUBS
• Front and rear bodies: aluminum
• Axle material: aluminum
• Auto adjust sealed cartridge bearings (QRM Auto), front and rear
• Freewheel: Instant Drive 360 double ratchet system
• Front: Quick release, 12x100 and 15x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible

VERSIONS
• Disc standard: Center Lock (R) only
• Freewheel: Shimano/Sram or XD-Road

COMPATIBILITY
• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
• Front axle: 12mm thru axle, easily convertible to quick release with optional adapters. Convertible to 15mm with complete axle replacement
• Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters

COMPATIBLE ADAPTERS AND FREEWHEEL BODIES
• 15mm axle ([LV2373500])
• 12mm front hub cap ([LV2680500] - Delivered with the wheel)
• 15mm axle ([LVXXXXXX])
• 12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)
• 12 to 9mm rear adapter for quick release ([LV2510800]
• ID360 Shimano/Sram Light freewheel body ([LV3850100])
• ID360 Campagnolo freewheel body ([LV3440100])
• ID360 XD-R freewheel body ([LV2580100])
• ID360 Shimano/Sram freewheel body ([LV3430100] - Delivered on the wheel)

DELIVERED WITH
• UST valve and accessories
• User guide

INTENDED USE
• ASTM CATEGORY 2: road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
• Recommended tyre sizes: 25 to 64mm
• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

KEY TECHNOLOGIES
• ISM 4D light rim technology
• Maxtal aluminum alloy
• Instant Drive 360 freewheel technology
• UST tubeless technology
• Fore tapeless tubeless technology
• Infinity Hubs
• QRM Auto bearing preload technology
• SUP welding technology
