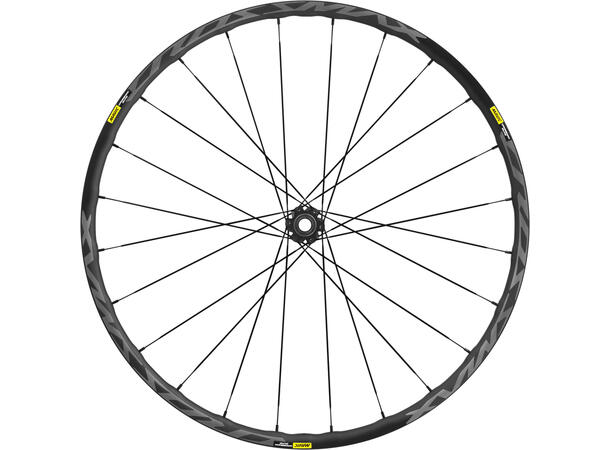

CROSSMAX ELITE 29"

Lightweight aluminum wheel delivers a dynamic XC ride quality.

KEY BENEFITS

Agile XC handling and dynamic ride quality.
Maxtal rim is both light and strong, with a 22mm internal width rim.
ISM 4D machining makes the wheel lighter without compromising durability.

Easy-to-use tubeless performance.
Special rim tape and tubeless valve provides the lightest and simplest way to experience tubeless benefits.
Better traction and comfort, and a reduced risk of punctures
UST technology.

Performance and dependability you never have to think about.
ID 360 freehub system for durability, fast engagement.

Years of analyzing wheels as a complete system, and testing them under the most demanding XC race conditions, has proven one thing: the reduced inertia of a superlight rim creates huge performance gains.
That’s why we engineered the Crossmax Elite with our lightest aluminum rim, the same one used in the Crossmax Pro. The rim is engineered with ISM 4D technology, which machines the rim between each spoke hole to minimize weight without compromising strength. The 22mm wide (internal) rim features the UST tubeless system for improved traction, reduced risk of punctures and easier tire mounting.
QRM hubs deliver smooth, long-lasting performance, and the fast-engaging ID360 freehub enhances the quick and dynamic feel. On the scales, the Crossmax Elite leads its category, weighing only 1596g in 27.5. And it’s available in Standard (15x100 and 12x142, convertible to quick release) or Boost (15x110 and 12x148) hub spacing in 27.5 and 29 versions.

SPECIFICATIONS

Compatibility
Front axle: convertible from 15mm thru axle to Quick Release with adapters (delivered with non-boost wheel)
Rear axle: 12mm thru axle, convertible to Quick Release with adapters (delivered with non-boost wheel)
Freewheel: Shimano/Sram or XD

Compatible Adapters and freewheel bodies
Non-Boost : 12x142 rear axle adapters (V2510701 - Delivered with the wheel)
Non-Boost : 12x135 rear axle adapters (V2510901)
Non-Boost : 12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
Non-Boost : 15 to 9mm front adapter for quick release (99694101 - Delivered with the wheel)
Boost : 12x148 rear axle adapters (V2510701 - Delivered with the wheel)
Boost : Torque Caps (V2374401)
Boost & Non-Boost : 15mm front hub cap (V2372501 - Delivered with the wheel)
ID360 XD freewheel body (V3740101)
ID360 Shimano alloy freewheel body (V3780101)
ID360 Shimano steel freewheel body (V3790101)

Weight
Pair 650b/27,5" without tyre: 1595 grams
Pair 29" without tyre: 1655 grams
Front 650b/27,5" without tyre: 723 grams
Front 29" without tyre: 753 grams
Rear 650b/27,5" without tyre: 872 grams
Rear 29" without tyre: 902 grams

Hubs
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum

Intended Use
Recommended tyre sizes: 36 mm to 64 mm (1.4" to 2.5")
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 3 : CROSS COUNTRY AND TRAIL RIDING

Rims
Use with Mavic Tubeless Tape
Hookless profile
Internal width: 22 mm
ETRTO size 29": 622x22TSS
ETRTO size 27.5": 584x22TSS
Weight reduction: ISM 4D
Drilling: traditional
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Joint: SUP
Material: Maxtal

Spokes
Shape: straight pull, flat, double butted
Material: steel
Lacing: front and rear crossed 2
Count: 24 front and rear

Versions
Freewheel: Shimano/Sram or XD
Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)
Disc standard : 6 Bolts only
Color: Black only

DELIVERED WITH
Rear QR adapters (non-boost wheel)
Front QR adapters (non-boost wheel)
Tubeless rim tape
UST valve and accessories
