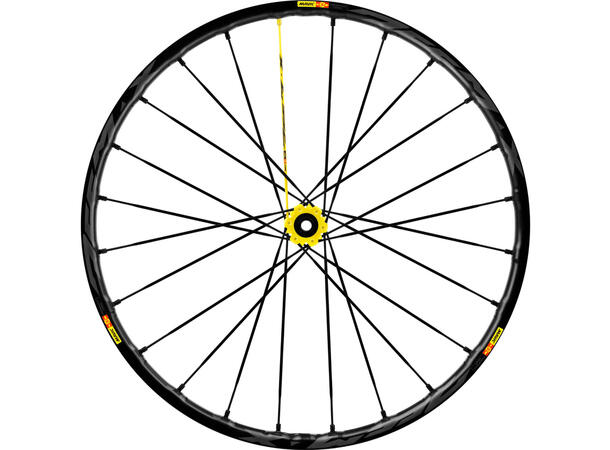

E-DEEMAX PRO 27" BOOST

Engineered for off-road E-bikes, this strong and durable wheel is backed by years of development in the rugged, high-speed world of Enduro racing

FRONT: 15x110mm
REAR: 12x148mm

CAPABLE OF: w/ optional adapters

FRONT:
Torque Caps : V26 502 01

KEY BENEFITS

Improve the performance of any off-road E-bike
28mm wide (internal) rims with 24 Zicral spokes optimize strength and acceleration in a lightweight package
ISM 4D rim technology further minimizes weight while maintaining a stiff and dynamic ride quality
ITS-4 freehub is reinforced with QRM Auto to handle the added torque of an E-bike

Tubeless tire technology gives you total control on rugged terrain
UST system provides user-friendly tubeless technology for better traction and control
Eliminating tubes from the wheel system reduces the risk of punctures

Off-road E-bikes are evolving quickly, creating a need for components that can keep up with their growing capabilities. We engineered the E-Deemax Pro to withstand the added forces associated with E-bike riding, and to make riding off-road even more fun. It benefits from our years of developing race-winning wheels for some of the top World Cup Enduro racers in the world. The demands of those racers, who need wheels that can withstand the punishment of high-speed, rugged Enduro tracks while being lightweight and dynamic feeling, parallel those of today’s off-road E-bikes. The E-Deemax Pro features many of the same technologies used in our current performance trail wheels, including UST rims that make it easy to run tubeless tires. Going tubeless can improve traction and control while reducing the risk of punctures. The rims are made with our innovative ISM 4D manufacturing process, which removes unnecessary material to minimize weight and reduce inertia while leaving enough material on the sidewalls and spoke bed to retain strength. An extra-wide rim shape (28mm internal width) boosts overall stiffness and helps optimize tire performance on aggressive terrain. The wheel is laced with 24 Zicral spokes for maximum power and brake torque transfer. The rear hub features our fast-engaging ITS-4 freehub and is compatible with any drivetrain setup.

SPECIFICATIONS

Compatibility
Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters
Freewheel: Shimano/Sram or XD
Front axle: 20mm, convertible to 15mm thru axle with included adapters

Rims
Internal width: 28 mm
ETRTO size 27.5": 584x28TSS
Hookless profile
Weight reduction: ISM 4D
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Drilling: Fore
Joint: SUP
Material: Maxtal

Weight
Pair 650b/27,5" without tyre: 1860 grams
Front 650b/27,5" without tyre: 810 grams
Rear 650b/27,5" without tyre: 1050 grams

Intended Use
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING
Recommended tyre sizes: 53mm to 76mm (2.1" to 3.0")

Versions
Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)
Disc standard : 6 Bolts only
Color: Black only

Hubs
Freewheel: ITS-4 QRM Auto alloy
Front bearings : adjustable sealed cartridge bearings (QRM+), Rear bearings : auto adjust sealed cartridge bearings (QRM Auto)
Front and rear bodies: aluminum

Spokes
Shape: straight pull, flat front and rear drive side and flat, double butted rear non drive side
Lacing: front crossed 2, rear Isopulse
Nipples: Fore integrated aluminum
Count: 24 front and rear
Material: Zicral

DELIVERED WITH
Front 15mm adapters
Multifonction adjustment wrench
UST valve and accessories
User guide
